Voltage LYNX® Trunk Bus

The Voltage LYNX® is our innovative solar wire harness system that provides streamlined power transmission from solar panels to the power collection system.

Lynx 2string Overmold

Next-generation technologies utilized in the manufacturing process enable the Voltage LYNX® to provide greater efficiencies while reducing labor and material costs. The trunk bus system eliminates multiple traditional components on a utility scale solar installation. These improvements reduce the number of connections, potential variable challenges and the amount of equipment that requires upkeep and repairs throughout the lifespan of the solar installation.

The Voltage LYNX® trunk bus system surpasses all internal and third-party testing and has achieved its ETL certification to the UL9703 standard. Voltage engineers closely collaborate with the customer’s pre-construction department and project engineers to determine the customized lengths and requirements of each row of the installation. Once delivered on site, the pre-assembled LYNX® is installed in a “plug and play” format which reduces the necessary labor and increases installation productivity.

Overall, by lowering the capex while increasing the ROI, Voltage’s newest product clearly delivers at being a bottom-line fiscal advantage for its customers. The Voltage LYNX® is a continuation of the on-going mission at Voltage, LLC to provide its customers with high quality wire and harness products that help supply the community nationwide with clean energy solutions.

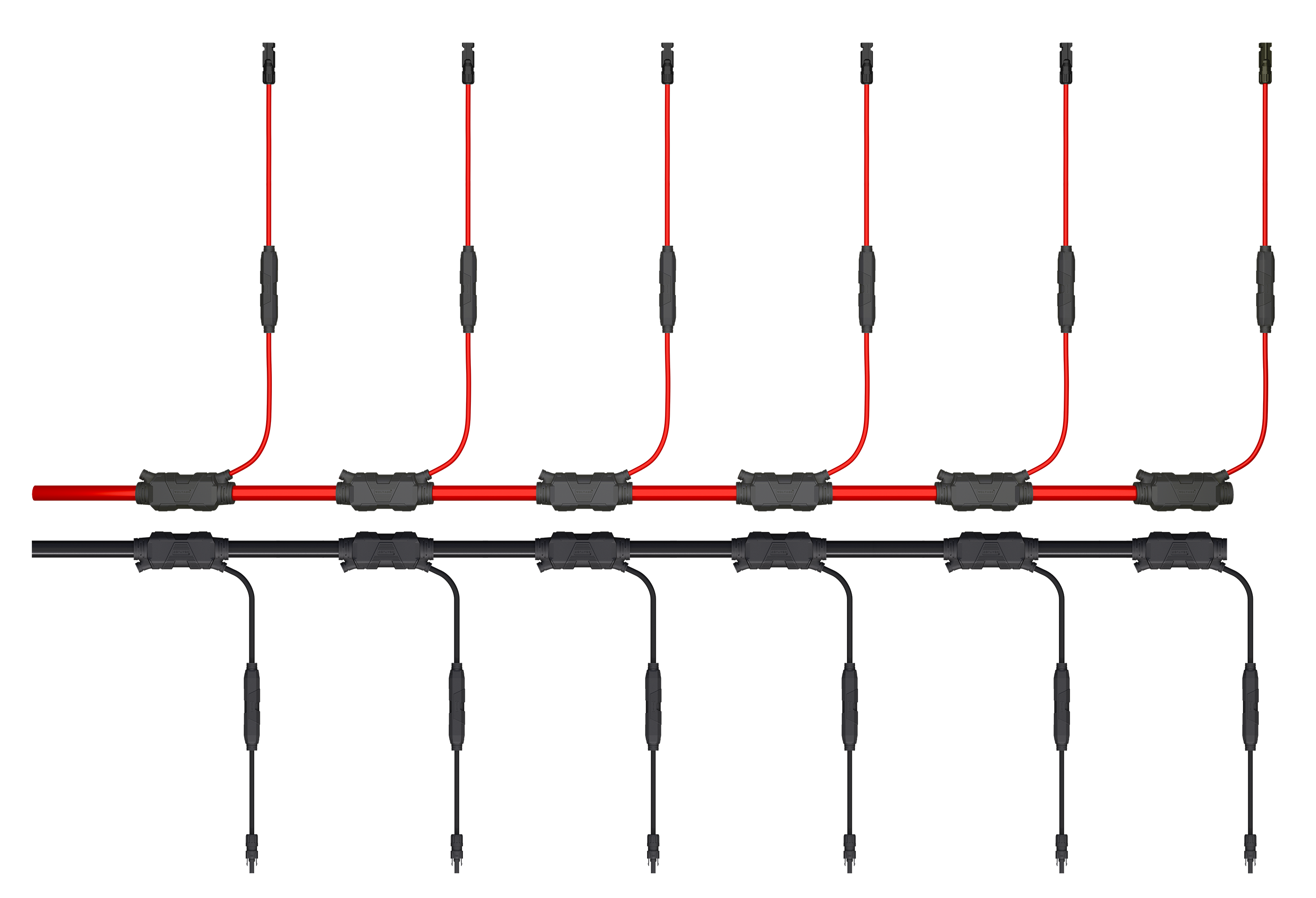

Voltage LYNX® 6String



KEY FEATURES

  • Main trunk size up to 1000 MCM
  • Able to upsize when collecting more strings
  • Building Information Modeling (BIM) 3D technology utilized for trunk-bus customization
  • Excellent waterproof performance
  • Molding material is suitable for outdoor rating per UL 746C.
  • Flame retardant molding material is UL94 flammability classified as V-1 approved.

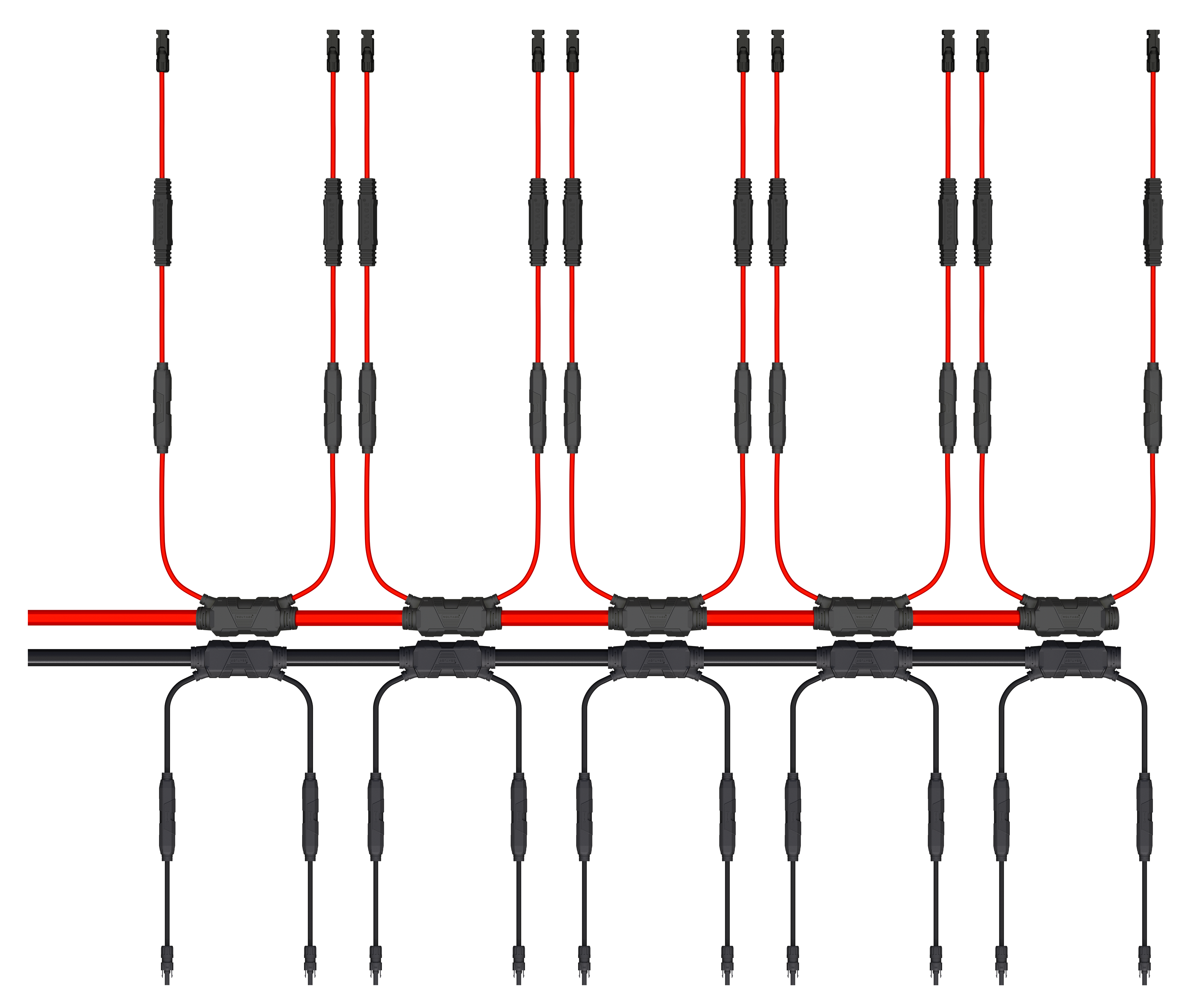

LYNX® 10 wire pair



TECHNICAL DATA

  • Voltage rating: 1500V DC
  • Trunk Isc. Range: 1/0AWG to 1000MCM / 845A
  • Operating temp.: -40°C ~ 90°C
  • Max # of inputs per mold: 6
  • Max size of input wire: 6AWG
  • NEC 2020 Table 310.16 and 310.17 are utilized when calculating wire sizes; 2000 Volts in Free Air, Based on Ambient Temp. of 40°C (104°F)

STANDARDS

  • Conforms to UL Std. 9703
  • Certified to CAN/CSA Std. C22.2 #182.5 Photovoltaic Connectors
  • Certified to CAN/CSA Std. C22.2 #271 Photovoltaic Cables
  • Certified to CAN/CSA Std. C22.2 #198.2 Sealed Wire Connector Systems
